A lug nut torque calculatorsettles an argument that starts the second the tire shop hands your keys back. Somebody hit all five nuts with an impact gun in about four seconds, and that gun has no setting for your car — it has a setting for the air pressure in the shop. On a Camry that wants 76 ft-lbs, a gun left where the last truck job needed it will happily deliver 250. Three weeks later your brake pedal starts pulsing, and nobody connects the two events.

Why the Chart Says 85 and Your F-150 Says 150

Almost every torque chart on the internet is organised by thread size, and it goes something like this: M12 × 1.5 gets 70–80 ft-lbs, M14 × 1.5 gets 85–90. That chart is not wrong exactly, but it was written for aftermarket wheel hardware, and it will badly under-tighten a modern truck. Ford specifies 150 ft-lbsfor a 2015-or-newer F-150 on that same M14 × 1.5 stud. The chart is 65 ft-lbs light — off by 72%.

The reason is that torque was never really the point. Torque is just the crude lever we use to stretch a stud, and the stretch is what holds the wheel on. The relationship engineers use is:

• T = K × D × F— where T is torque, D is the stud's nominal diameter, F is the clamp force you actually want, and K is a friction fudge factor of roughly 0.20 on clean dry threads
• Rearranged for what matters: F = T ÷ (K × D)

Run both vehicles through it. The Camry's 76 ft-lbs is 912 lb-in on a 0.472-inch M12 stud, so F = 912 ÷ (0.20 × 0.472) = 9,650 lbs of clamp per stud, or about 48,000 lbs holding each wheel. The F-150's 150 ft-lbs is 1,800 lb-in on a 0.551-inch M14 stud: F = 1,800 ÷ (0.20 × 0.551) = 16,330 lbs per stud, and with six studs that is roughly 98,000 lbs per corner. The truck needs to clamp twice as hard because it weighs nearly twice as much and its brakes try twice as hard to twist the wheel off the hub. Thread size sets the ballpark. Vehicle weight decides where inside it you land.

Factory Torque Specs for 24 Common Vehicles

These are the published manufacturer figures for the platforms people look up most. Note how little the thread column predicts the torque column — M14 × 1.5 alone spans a 97 ft-lb Tundra and a 165 ft-lb F-350, a 70% spread on identical hardware.

Specs move between generations, so treat this as a starting point and confirm against the owner's manual. A 2004 F-150 on 1/2" studs wanted 100 ft-lbs; the 2015 truck on M14 hardware wants 150. Same badge, 50 ft-lbs apart.

Two Ways to Get This Wrong, and What Each One Costs

Clamp force tracks torque almost proportionally, so a 30% miss on the wrench is a 30% miss on the force holding your wheel to the car. The two directions fail completely differently, and only one of them gives you any warning.

Too loose is the one that kills people.Set a Silverado's nuts to 100 instead of 140 and each stud carries about 4,700 lbs less clamp. That is enough that the wheel micro-slips against the hub on every pothole, and each slip lets the nut rotate a few degrees. Now the stud holes in the wheel start wearing into ovals, which means even a correct re-torque will not hold. The NHTSA tire and wheel safety guidance is blunt about this: check wheel fasteners after any service. The tell-tale is a rhythmic clicking or clunking at low speed that changes with steering load. If you hear it, pull over immediately — a wheel that has started walking will not last another exit.

Too tight costs money instead of lives.Wheel torque specs are set to stretch the stud to roughly 75% of its yield strength, which keeps it acting as a spring. Push 30% past spec — that Silverado at 182 ft-lbs, which any impact gun does without breathing hard — and the stud yields. It stretches permanently, never springs back, and the next removal often snaps it. Budget $100 to $250 per stud at a shop, because the hub usually has to come off to press the old one out. Worse, uneven over-torque pulls the hub flange out of true by a few thousandths of an inch, and that runout is where pedal pulsation and so-called warped rotors actually come from. Front rotors and pads run $250 to $500 per axle to put right — a bill created entirely by four seconds with an impact gun.

Never Put Anti-Seize on a Wheel Stud

This one catches careful people, which is what makes it worth a section. Anti-seize feels like good practice, especially on a salt-belt car where a seized nut is a real annoyance. It is the wrong instinct here, and the arithmetic shows why.

Go back to T = K × D × F. Every published wheel torque figure assumes K ≈ 0.20, the friction of clean dry threads. Oil, grease or anti-seize drops K to about 0.15. You did not change the torque, so F has to absorb the difference: clamp load rises by 0.20 ÷ 0.15 = 1.33×. Your wrench clicks contentedly at 140 ft-lbs on that Silverado while the stud is being stretched as though it saw 187. You have arrived at the over-torque failure above by being conscientious.

The fix is not to guess at a reduced torque figure — K varies far too much between lubricants to compute a reliable correction in a driveway. Wipe the studs and the nut seats with a dry rag, chase any crusty threads with a wire brush, and torque dry. That is the procedure the Tire Industry Association trains shops on, and it is why no manufacturer publishes a lubricated wheel spec.

Torque Wrench, Torque Stick, or Impact Gun?

Three tools, and only one of them is allowed to do the final pass. Here is where each genuinely belongs:

• Impact gun — running the nuts down, never finishing them. A mid-range cordless impact delivers 400 to 1,000 ft-lbs of nut-busting torque and has no idea when to stop. Use it to spin nuts up to finger-snug, then put it down.
• Torque stick — a speed limiter, not a torque wrench.The coloured extension flexes to cap how much the gun transmits, but its real accuracy is roughly ±20–25% and it depends on gun power and how long you hold the trigger. On a 76 ft-lb Camry that band spans 57 to 95. Fine as a fast first pass, not a final answer.
• Click torque wrench — the only correct final pass.A decent 1/2-inch drive click wrench is $40 to $90 and holds about ±4%. Pull smoothly, stop at the first click, and do not chase it with a second click — that stacks torque on a joint that has already reached spec.

Two habits keep a click wrench honest. Wind it back to its lowest setting before it goes in the drawer, because storing it under spring load drifts the calibration. And buy a range that puts your number in the middle third of the scale: a 20–150 ft-lb wrench is reading near its ceiling on an F-250's 165 ft-lbs, which is exactly where these tools are least accurate.

The 50-Mile Re-Torque Nobody Does

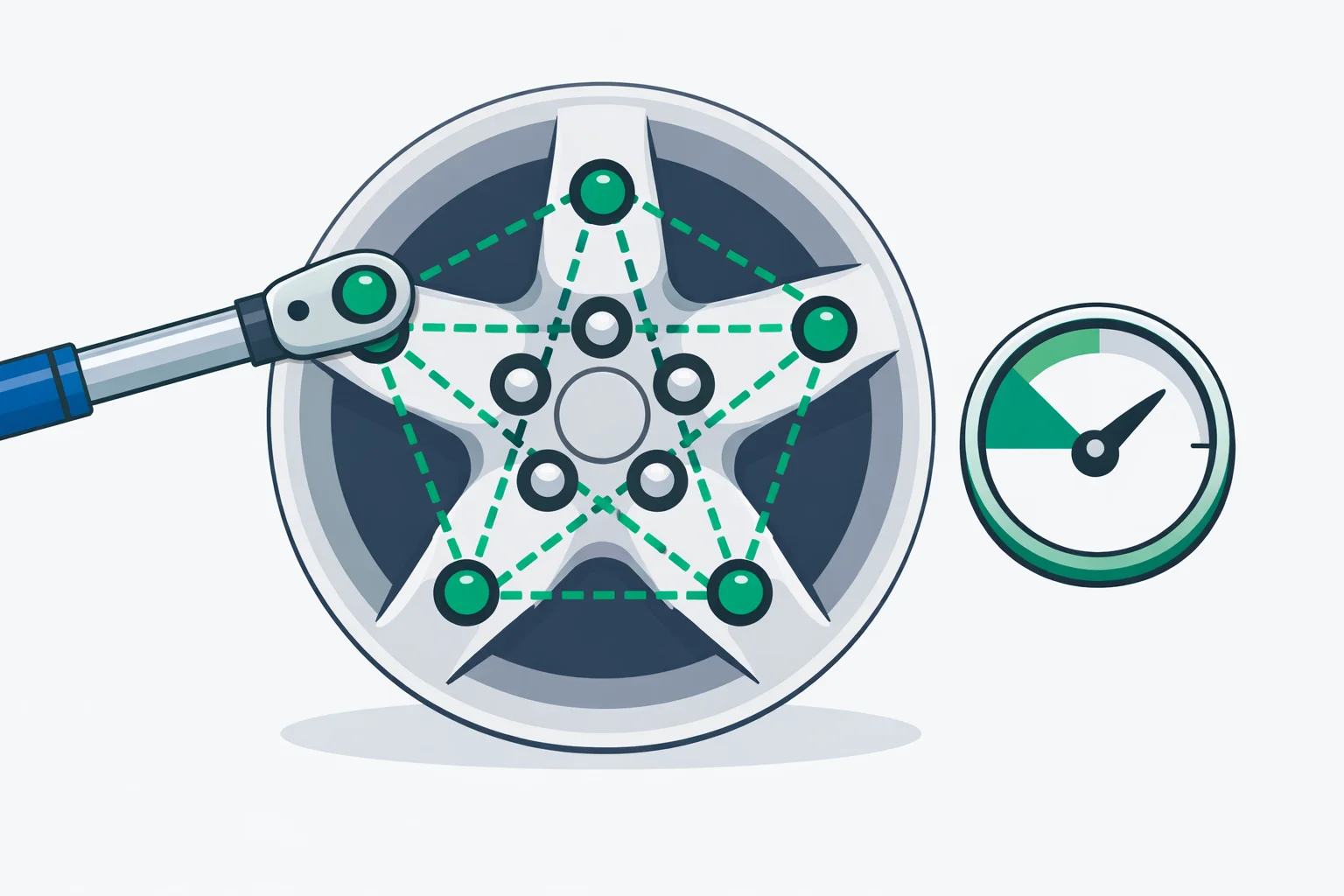

Fresh from a wheel change, the wheel face and the hub face are not really touching — they meet on the high spots of two machined surfaces. Drive on them and those high spots bed in, the stack settles a few thousandths, and the studs relax. The clamp force you carefully dialled in bleeds off by something like 5 to 10% in the first heat cycles, which is why the 50-to-100-mile re-torque exists. It takes four minutes: jack nothing, just run the star sequence again at full spec and see which nuts move.

Trailers settle harder and faster because they stack more clamped surfaces, so the standard there is tighter — check at 10, 25 and 50 miles, and again before any long tow. While the trailer is loaded for that tow, it is worth putting it through a tongue weight check too, since a few hundred pounds of cargo on the wrong side of the axle is what turns a well-torqued wheel into a swaying trailer. And if you have just fitted aftermarket wheels, one more thing outranks torque entirely: the seat. Conical 60° nuts on a wheel machined for ball seats touch on a thin edge instead of a cone, and that joint will loosen at any torque you set. Match the seat type to the wheel before you worry about the number, and check that the new wheel size and offset leave the hub bore seated flat against the hub rather than hanging on the studs. Studs are not meant to centre the wheel; they are only meant to squeeze it.
